Extender / C-mount adaptors / Mount adaptors >>Lens & Camera Combinations Table
   　Extender
    　The lens mount attaches between a lens and a camera, and increases the focal length.
  　※Click model name for spec. (PDF)

  Model EX005-M12-2 EX010-M12-2
  Material / Surface finishing Aluminum / Black alumite (Pearskin finish)
  Mount Lens: M12 P=1.0 / Camera: M12 P=0.5
  Dimensions  Φ15×9 mm  Φ15×14 mm

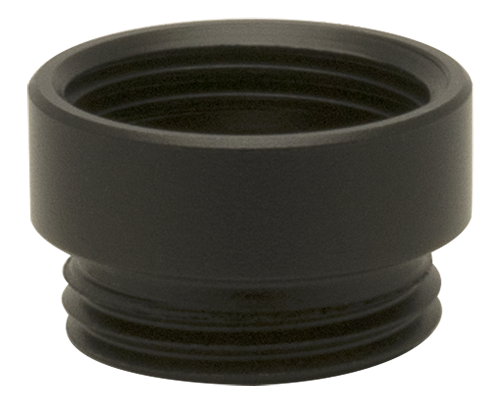

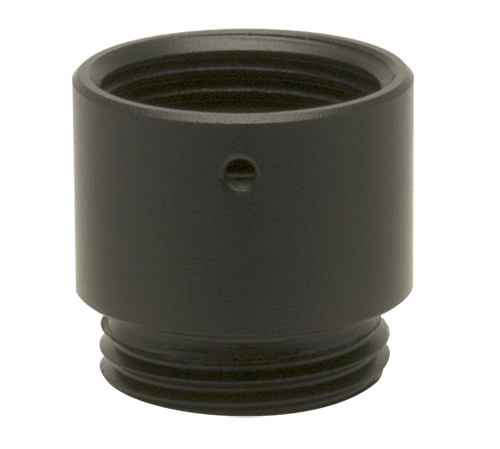

  Model EX005-M13 EX010-M13
  Material / Surface finishing Aluminum / Black alumite (Pearskin finish)
  Mount Lens: M13 P=1.0 / Camera: M13 P=1.0
  Dimensions  Φ15×9 mm  Φ15×14 mm
       Back to Top
   　C-mount adaptors
    　The CS to C Mount Adapter allows a CS mount CCTV camera to be used with a C mount lens
  　※Click model name for spec. (PDF)

  Model 30CMA-R 34CMA-R
  Material / Surface finishing Aluminum / Black alumite (Pearskin finish)
  Mount  U1-32UN
  Dimensions  Φ30×9 mm  Φ34×9 mm
        Back to Top
   　Mount adaptors
    　These lens mounts are designed for use with miniature lenses/compact lenses and CS mount cameras
  　※Click model name for spec. (PDF)

  Model 28MMA-M12-090 28MMA-M12-140 28MMA-M12-155
  Material / Surface finishing Aluminum / Black alumite (Pearskin finish)
  Mount  M12　P=0.5
  Dimensions  Φ31×9 mm  Φ31×14 mm  Φ31×15.5 mm


  Model 22PMA-M12-125 22PMA-M13-040
  Material / Surface finishing Aluminum / Black alumite (Pearskin finish)
  Mount  M12　P=0.5  M13　P=1.0
  Dimensions  Φ21.9×12.5 mm  Φ21.9×4 mm


  Model 29PMA-M12-125 30.5MMA-M12-120
  Material / Surface finishing Aluminum / Black alumite (Pearskin finish)
  Mount  M12　P=0.5
  Dimensions  Φ28.9×12.5 mm  Φ36×12 mm

 Back to Top
