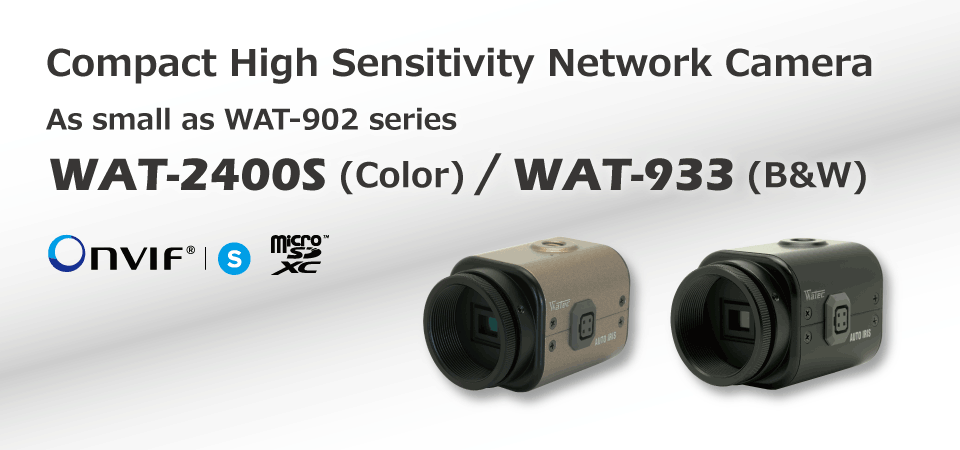

Network Camera, as small as the WAT-902 series

   Network camera, supporting Full HD・PoE, as small and light as the WAT-902 series.
 Appling the 1/2.8" BSI CMOS image sensor enables high resolution and competitive high sensitivity to
 our analog cameras.


    ■Resolution Comparison

  SD (WAT-250D2)   Full HD (WAT-2400S)


   ■Sensitivity Comaprison  *Environment: Illumination approx. 0.2 lx

  WAT-902H3 SUPREME   WAT-933




Approx.
Fivefold

  Minimum Illumination:0.0005 lx    Minimum Illumination:0.0001 lx

   Supporting microSD

   It is able to keep recording by the stand-alone without the network connection.
 Easy to find, playback and write to PC the recorded video.

    ■Recommended Specification
  ・SDXC / SDHC standard
  ・MLC type
  ・Speed Class CLASS 10 or more
  ・Capacity of 128GB or less
  ■Record video 24 hours
   Setting (with the recommended 128GB microSD)
  ・1080/30p
  ・Bitrate: 10Mbit/s
  ・H.264 compressed
  *The recording time is extendable by settings.


   Video output quick start-up

   Shortened 80%! Starting quickly compare with the WAT-2400.


WAT-2400S / WAT-933 WAT-2400
Approx. 6 sec.  Approx. 30 sec.



   Power-saving Design

   Reduced 65%! A large reduction in power consumption compare with the WAT-2400.


WAT-2400S / WAT-933 WAT-2400
    PoE:1.92W/40mA
DC+12V:1.56W/130mA
     PoE:5.6W/127mA
DC+12V:5.4W/450mA



   Pick up sounds

   The internal microphone enables not only the surveillance and monitoring but also the audio recording.
 Able to check the situation at the camera location where cannot be seen.
 The external microphone connection is available for the clearer audio recording.


   Options
   This product exerts the optimum performance with our recommended options.
 Please contact our distributors or dealers. Variety of options are available. >>More Options


  VARIOUS LENSES    SWI12-12-N-P5


We offer lenses maximizing the
performance of the camera.



A power supply adaptor (DC+12V)
supporting the camera.



  CB-06    CB-07


Utilize when connecting the LINE
  output.


Utilize when connecting the MIC.
which is a plug-in power type.


  30CMA-R   MS50


This lens mount adaptor is used to
convert a CS-mount to a C-mount.



With the coupler structure, the camera
can be adjusted to any desired angle.
